Sequence Packing on JAX/Tunix TPU: Turning Padding Into Useful Tokens

This report makes one deliberately narrow claim: for Gemma LoRA SFT on JAX/Tunix, sequence packing turns padding-heavy fixed rows into useful target tokens. Gemma3 270M is the exhaustive base case. Gemma3 1B and Qwen3 0.6B are transfer checks. Packing is a data-density and useful-token-throughput optimization, not a fixed-shape memory optimization.

Executive Summary

Experiment Scope

The local density sweeps used 5k and 20k OPUS100 examples. The dataset ablation used 5k examples per dataset. The 270M TPU runs used 5k examples on v5litepod-1, one chip. The 1B transfer check used the same 5k-example dataset matrix on v5litepod-32, 32 chips, with fsdp=8,tp=4. The Qwen3 0.6B transfer check used the same three datasets, with one-chip L512 rows and four-chip L1024 rows where the longer context fit.

1. The Dataset Has a Large Packing Opportunity

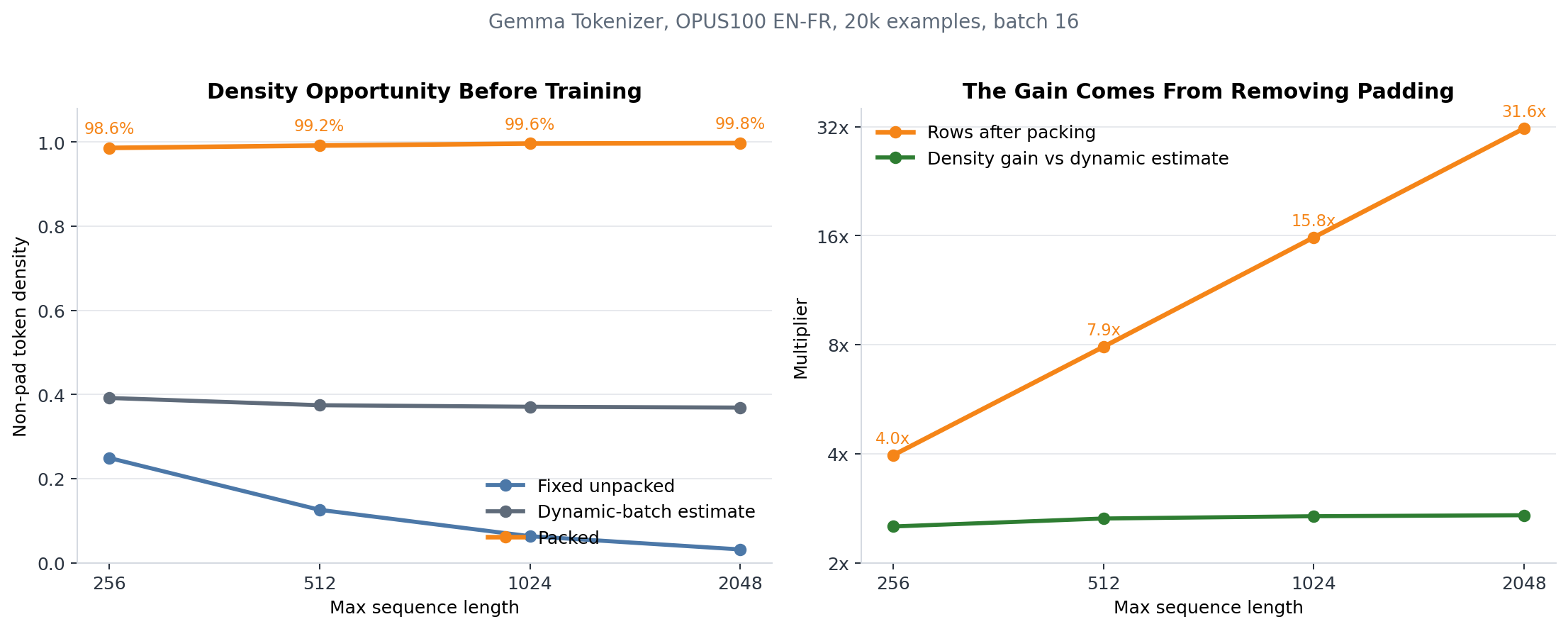

Before loading the model, the Gemma tokenizer already shows why packing is worth testing. With 20k OPUS100 EN-FR examples and batch 16, fixed unpacked density falls as max length grows: 24.9% at L256, 12.6% at L512, 6.3% at L1024, and 3.2% at L2048. Packed density stays around 98.6-99.8%.

The most important number here is not memory. It is row reduction. At L512, 20k examples collapse to 2,535 packed rows, a 7.9x row reduction. At L2048, they collapse to 632 rows, a 31.6x row reduction. That does not make the model shape smaller during a given step; it makes each fixed row carry far more real training content.

2. Dataset Shape Decides the Gain

Packing is model-agnostic at the mechanism level, but the payoff is not dataset-agnostic. It depends on how many supervised target tokens survive inside each fixed row. To test that directly, the 270M rerun added a max-length sweep over three SFT-like datasets: OPUS100 EN-FR, Alpaca, and OASST1 English assistant turns.

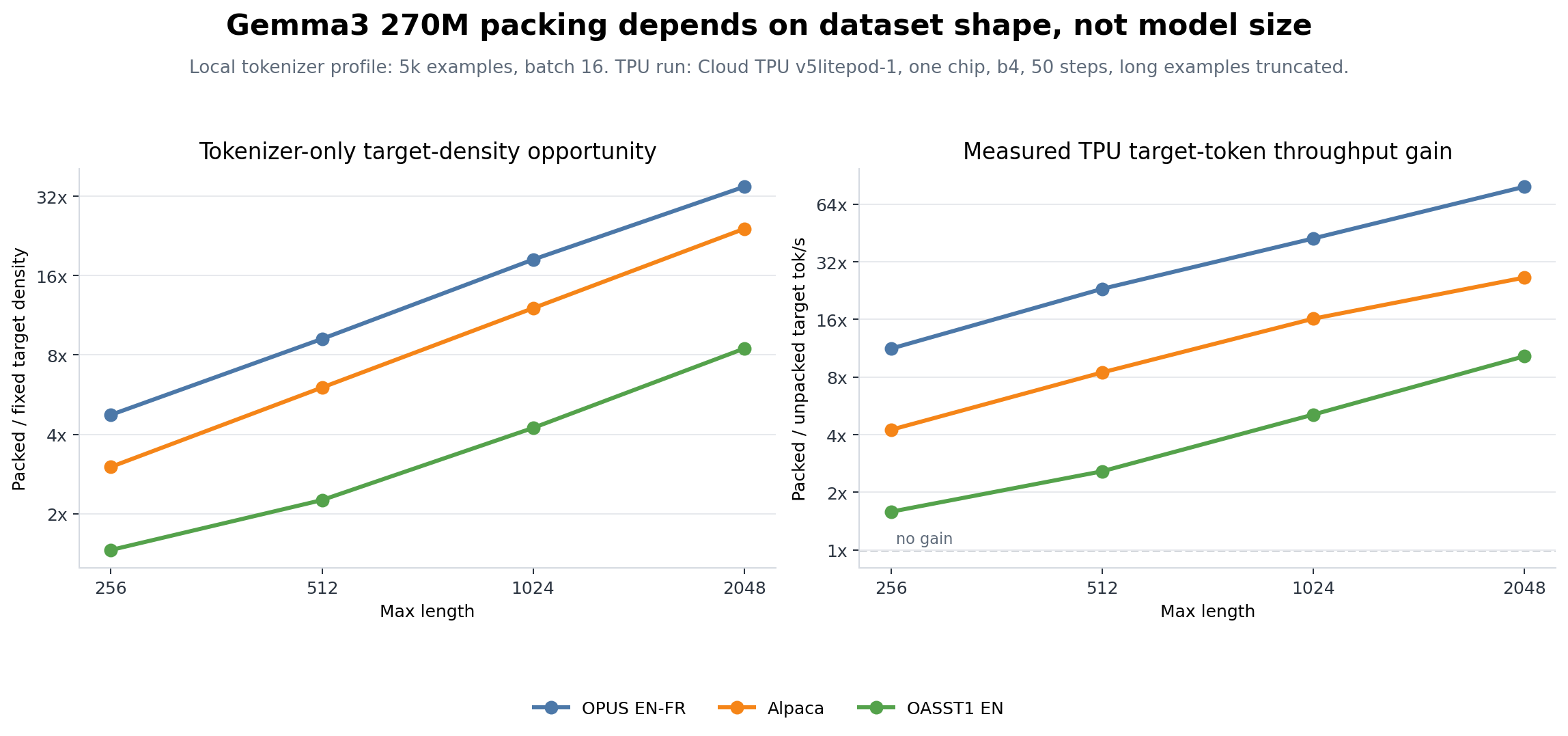

The left panel is tokenizer-only. It asks how much target-token density packing could recover before any model is loaded. The right panel is the corresponding measured TPU gain for the collected short runs, using the same Gemma3 270M LoRA setup on one v5litepod-1 chip with batch 4 and 50 measured steps.

This is the cleanest way to read packing: max length amplifies the win only when examples are short relative to the row. OPUS and Alpaca therefore improve as context length grows. OASST improves more slowly because its examples are longer and already fill more of each fixed row.

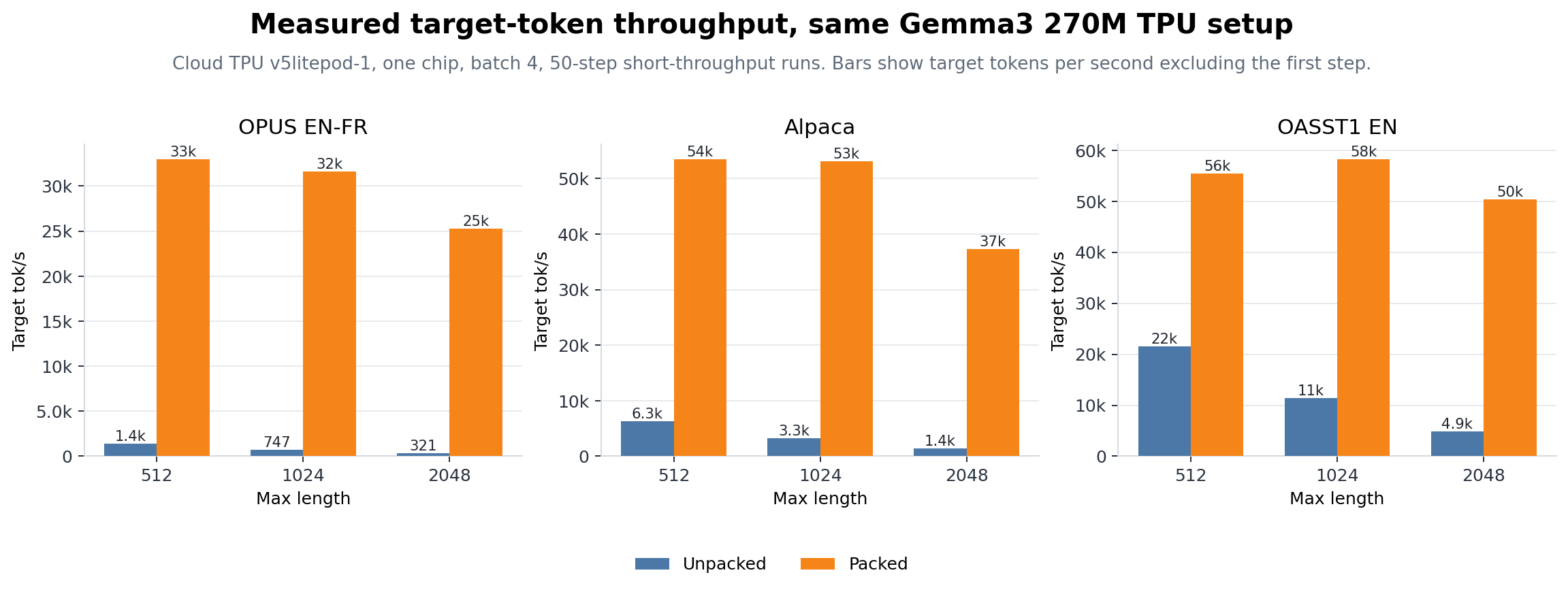

For absolute measured throughput, the retained TPU rows are:

3. Transfer Checks Preserve the Story

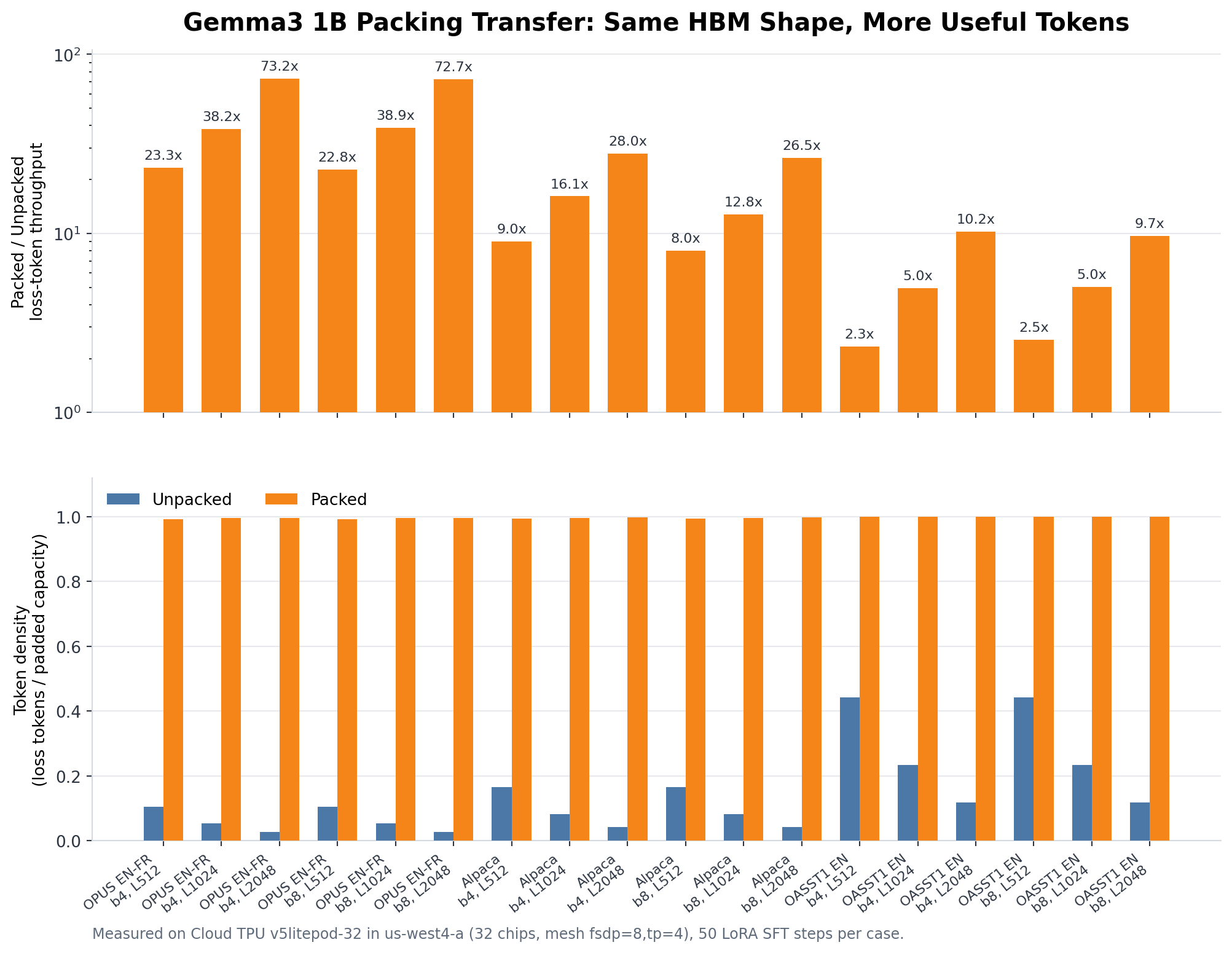

The 270M result should not be read as a tiny-model curiosity. To check transfer without changing the claim, the same short-throughput matrix was run on Gemma3 1B with the same three datasets, b4/b8, L512/L1024/L2048, 50 LoRA SFT steps per case, and default CE. The TPU was v5litepod-32 in us-west4-a with 32 chips and mesh fsdp=8,tp=4.

The shape of the result is the same as 270M: packed rows are nearly full, while unpacked target-token density falls as max length grows. The payoff remains dataset-dependent:

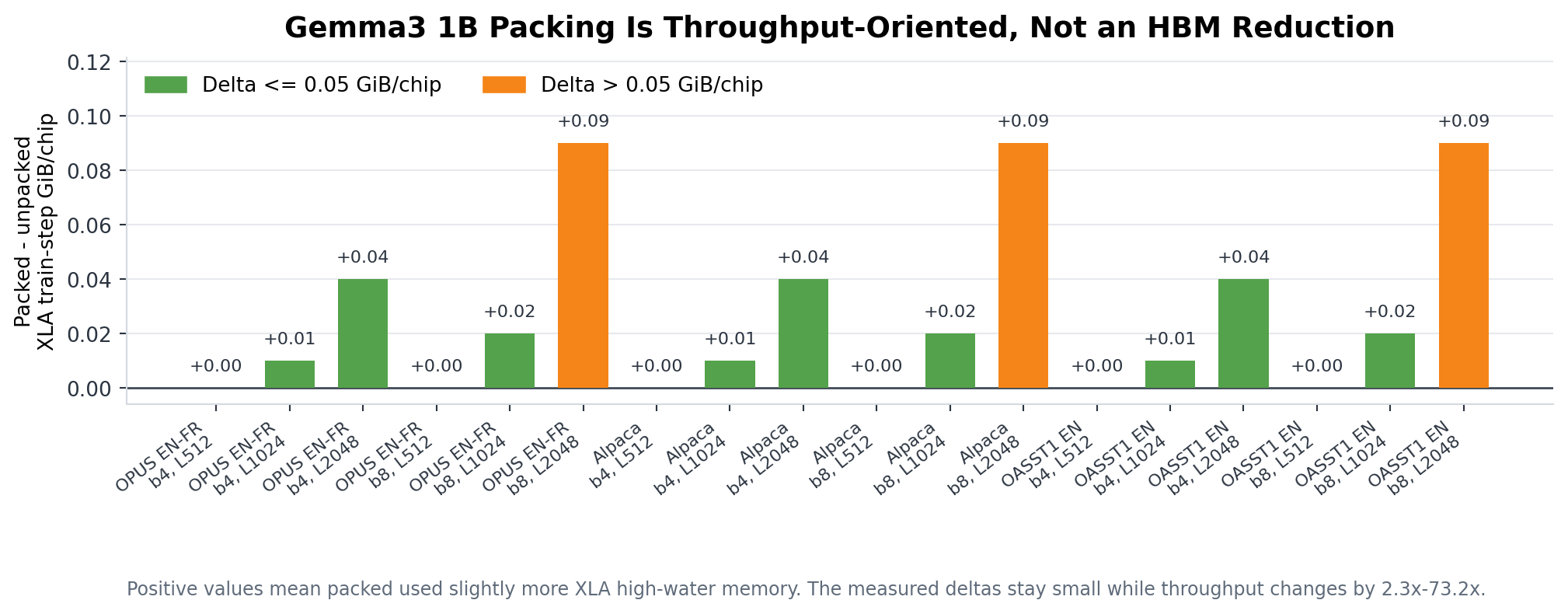

Memory stays a negative control rather than the headline. Packed and unpacked use the same fixed (batch, length) shape, and the measured XLA high-water deltas were small:

This 1B run also exposed a practical sharding note. On v5litepod-16 and on v5litepod-32 with FSDP-only style sharding, b8/L2048 did not fit. The retained 1B matrix therefore uses fsdp=8,tp=4. That setup detail affects fit, but it does not change the packing interpretation: once the fixed shape fits, packing fills that shape with useful tokens instead of padding.

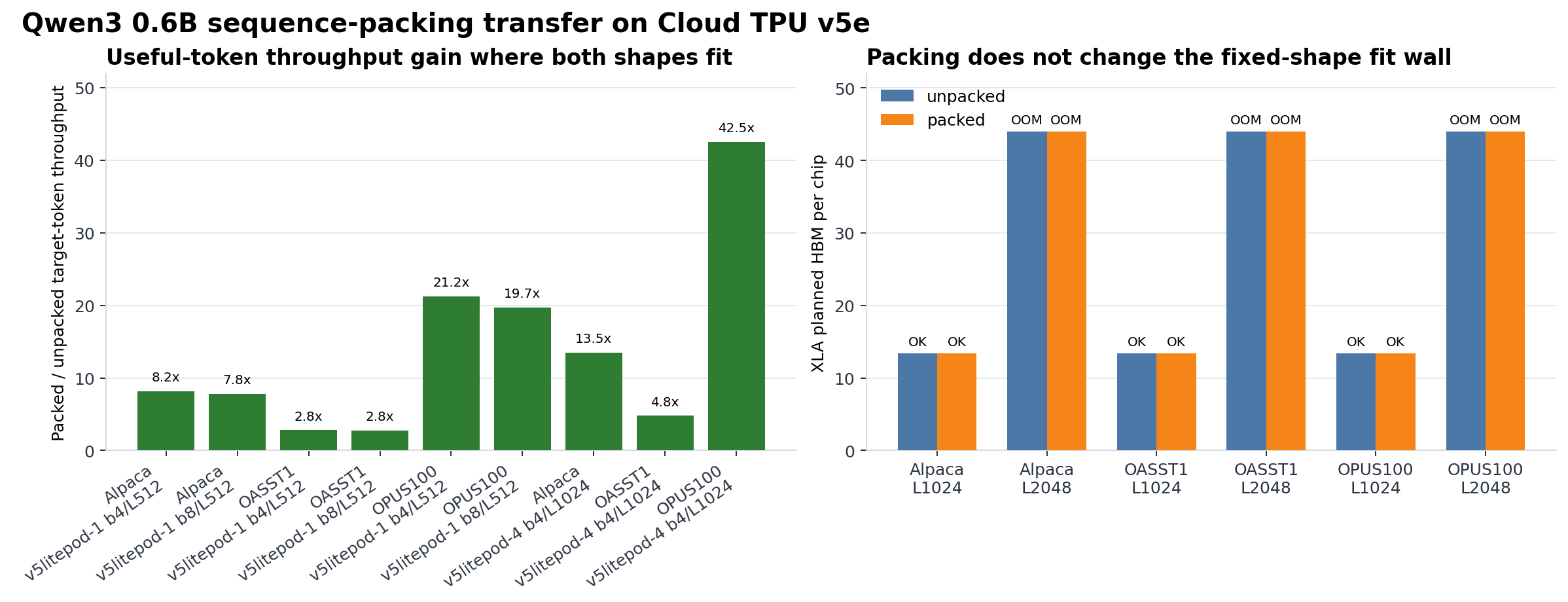

The non-Gemma Qwen3 0.6B check keeps the same interpretation. It used Qwen/Qwen3-0.6B, one-chip L512 rows on v5litepod-1, and four-chip L1024 rows on v5litepod-4. The result is again dataset-shaped: OPUS benefits most, Alpaca remains strong, and OASST1 is smaller because its examples are already longer.

The right panel is the negative control. Packed and unpacked have the same fixed (batch, length) shape, so they also share the same fit wall: at four-chip b4/L2048, both variants are OOM with the same planned-HBM band. This is exactly what we want from the claim boundary. Packing changes how much useful training data each row carries; it does not make a fixed row cheaper to compile.

4. The Throughput Gain Is Real When the Shape Fits

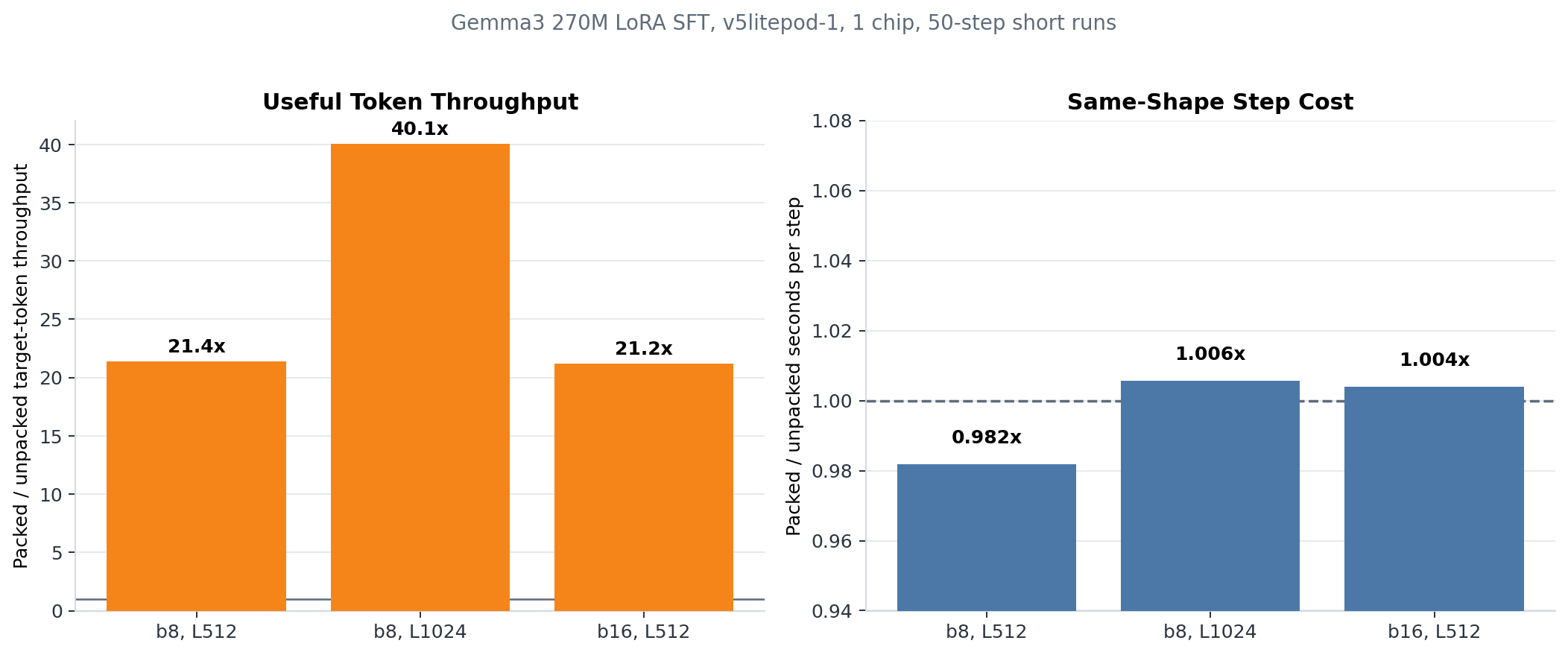

For the passing matched shapes, step time stayed in the same band while target-token throughput increased sharply.

The b8/L1024 row gets the largest throughput gain because fixed unpacked target-token density is especially low at that shape. The model is doing about the same fixed-shape work either way; packed batches simply waste far fewer positions.

5. Useful-Token Budget View

The quality sanity run used b16/L512 for both variants:

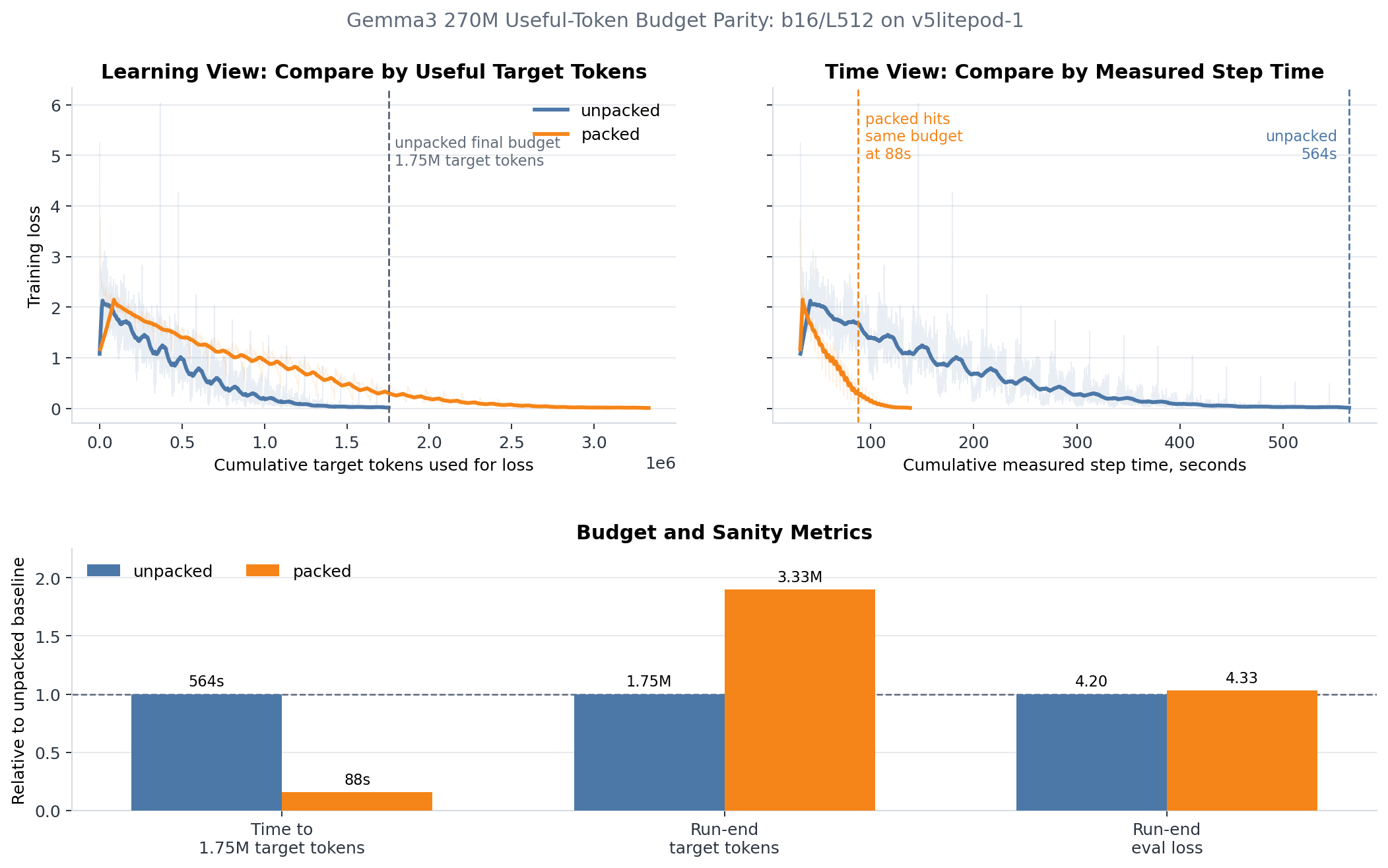

Packed reached the unpacked run's final 1.75M target-token budget at step 528, after 88s of cumulative step time. The unpacked run needed 5,000 steps and 564s of cumulative step time to reach the same budget. That is a 6.4x time-to-budget gain in this run.

The loss figure deliberately has two views. The useful-token view asks what the model achieved after seeing a given number of supervised target tokens. The time view asks how quickly each input pipeline moved through training. Packing looks strongest in the time view because it reaches the same 1.75M target-token budget far earlier.

The useful-token view is the tradeoff. Packing delivers many more target tokens per optimizer update, so the packed and unpacked loss curves should not be read as identical optimizer trajectories. If an experiment needs the same number of optimizer updates, the packed run should be scheduled differently. If it needs the same useful-token budget, packing can reach that budget much faster.

The eval losses are retained only as a sanity check that both jobs completed normal Tunix training and evaluation. They are not presented as a translation quality benchmark.

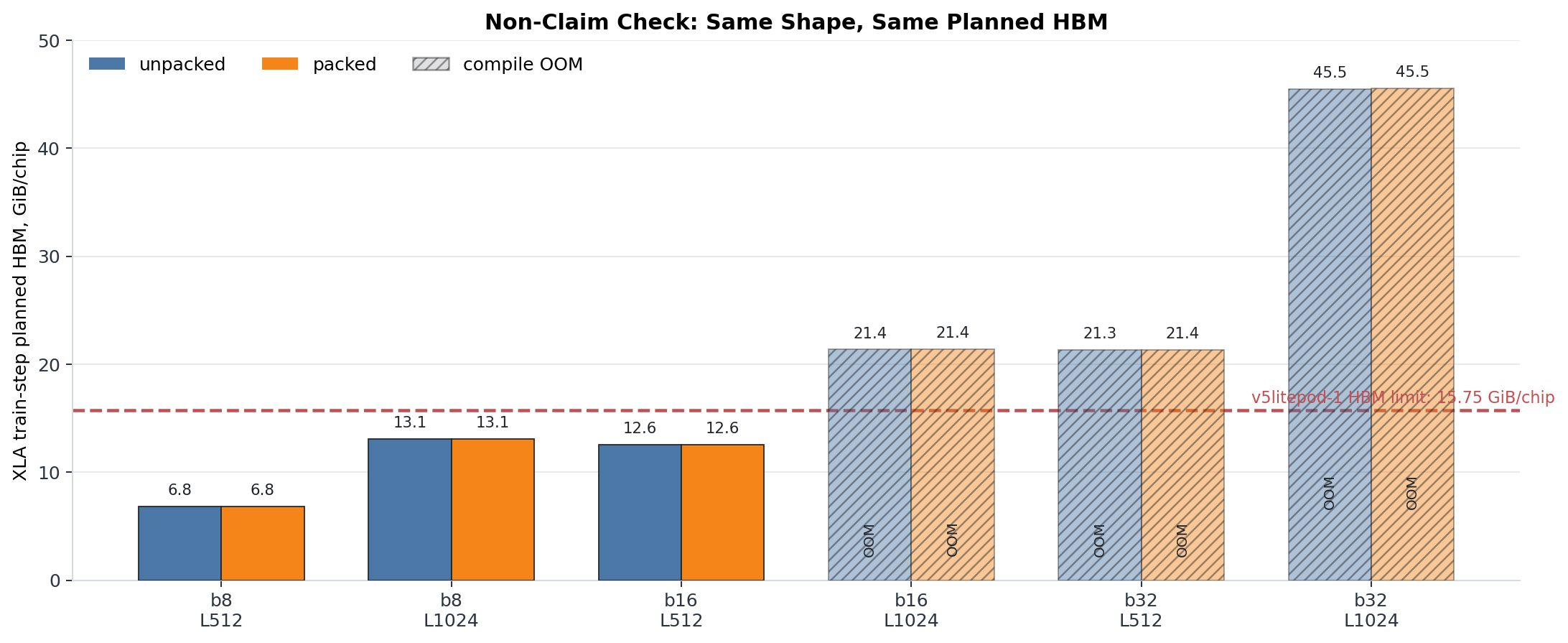

6. Non-Claim Check: Same Shape, Same Planned HBM

The short TPU matrix also records planned HBM, but only as a guardrail. Packing changes token layout and masks inside a fixed row; it does not change (batch, length). Therefore the planned HBM footprint should remain the same.

That is what happened. Passing and failing shapes had nearly identical planned HBM for packed and unpacked variants.

This section exists to bound the claim. If the desired shape cannot compile because CE logits or attention activations exceed HBM, packing alone will not make that shape fit. That job belongs to memory-path optimizations such as CCE or activation-memory work.

7. Implementation Notes

The implementation has two layers:

1. tunix_accel.packing packs tokenized examples into fixed-length rows. It emits input_ids, loss masks, valid masks, per-segment positions, segment_ids, and a block-causal attention mask.
2. tunix_accel.tunix_packing adapts ordinary Tunix batches and widens PeftTrainer.with_gen_model_input_fn with optional packing= support.

The patched API is inert unless the caller passes packing=:

from tunix_accel import TunixPackingConfig

trainer = peft_trainer.PeftTrainer(...).with_gen_model_input_fn(
    gen_model_input_fn,
    packing=TunixPackingConfig(pad_token_id=0),
)

The packed input function preserves Tunix's input_mask as the loss mask and uses valid_mask plus block-causal attention_mask for model inputs. This is the correctness-critical part: without segment-aware attention and reset positions, packed rows can leak information across examples.

Because packing does not touch the loss function, it composes with CCE. The 270M rerun deliberately disabled CCE so that the sequence-packing claim stayed isolated.

8. Interpretation

The clean message is:

• Use packing when SFT examples are short relative to the chosen max length.
• Preflight the dataset first; model size is secondary to sequence length and target-mask density for this optimization.
• Expect useful-token throughput to rise roughly with target-token density.
• Treat optimizer-step parity and useful-token parity as different experiment designs.
• Do not use packing as a memory-wall fix; the planned-HBM rows are included only to prove that boundary.

In other words, packing is the right lever for padding waste. It is not the right lever for dense loss logits, attention activation memory, or model-state sharding.

9. Retained Artifacts

Processed tables:

• data/processed/gemma3_270m_summary.json
• data/processed/gemma3_270m_short_throughput_v5litepod1.csv
• data/processed/gemma3_270m_quality_v5litepod1.csv
• data/processed/gemma3_270m_quality_history_v5litepod1.csv
• data/processed/gemma3_270m_dataset_profile.csv
• data/processed/gemma3_270m_dataset_tpu_sweep_v5litepod1.csv
• data/processed/gemma3_270m_dataset_ablation_summary.json
• data/processed/gemma3_1b_packing_transfer_v5litepod32.csv
• data/processed/gemma3_1b_packing_transfer_pairs_v5litepod32.csv
• data/processed/qwen3_0p6b_packing_transfer.csv
• data/processed/qwen3_0p6b_packing_transfer_pairs.csv

Local density tables:

• data/local_density/no_model_5k_packing_efficiency.csv
• data/local_density/no_model_20k_packing_efficiency.csv
• data/local_density/gemma_tokenizer_5k_packing.csv
• data/local_density/gemma_tokenizer_20k_packing.csv

Compressed raw TPU artifacts:

• data/raw_artifacts/gemma3_270m_short_throughput_v5litepod1/*.tgz
• data/raw_artifacts/gemma3_270m_quality_unpacked_v5litepod1/*.tgz
• data/raw_artifacts/gemma3_270m_quality_packed_v5litepod1/*.tgz
• data/raw_artifacts/gemma3_270m_dataset_sweep_opus100_v5litepod1/*.tgz
• data/raw_artifacts/gemma3_270m_dataset_sweep_alpaca_v5litepod1/*.tgz
• data/raw_artifacts/gemma3_270m_dataset_sweep_oasst1_v5litepod1/*.tgz
• data/transfer_1b/raw/gemma3_1b_transfer32_tp4_results.tar.gz
• data/raw_artifacts/qwen3_0p6b/*.tar.gz
